Vertical platform (for people with disabilities)
Vertical Disabled Platform

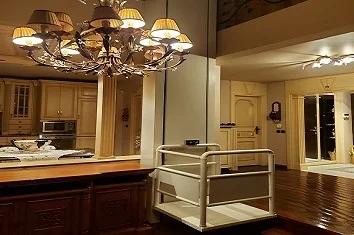

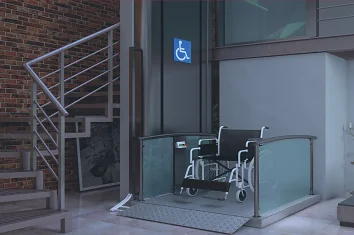

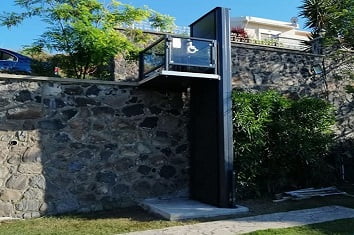

Vertical Disabled Platform - A vertical platform is defined as an open platform designed for utilisation by disabled individuals, with the primary function of facilitating vertical movement. The range of levels at which this platform can operate is reported to vary from 60 centimetres to 300 centimetres.Amada TECH Disabled Platforms are used globally for their ease of use, high mobility, quality and reliability.We manufacture solutions that are easy to install anywhere and operate smoothly, using the latest technology to meet your specific requirements. With a maximum vertical travel of 3 metres, our open-type disabled platform can be retrofitted at levels ranging from 600mm to 3000mm in both public and private buildings. It serves as a reliable alternative to a fully enclosed platform lift, requiring minimal or no modifications for installation in existing structures.
The vertical platform is a practical solution that is available in a range ofRAL colour options. The Amada TECH platform has been designed to provide safe and easy access to areas that are inaccessible to wheelchair users via stairs. It offers customers choice and flexibility.
Architectural Support
The design and dimensions of the platforms in your project will be sent to the customer by email on the same day.
What is accessibility regulation?
The accessibility standard is defined as a legal requirement for the provision of infrastructure to facilitate independent access and movement for disabled and elderly individuals in public and social places, including schools, hospitals, and municipal buildings, as well as common areas.
Key Features: – Modern, lightweight design for optimum portability – Optional stainless steel construction for durability and hygiene – Small footprint for maximum space efficiency – High level of safety for peace of mind – Quiet operation for uninterrupted use – Easy to use for straightforward maintenance – No borehole required for simple installation – Easy to install and maintain for cost efficiency – Overall low operating and maintenance costs for cost-effectiveness
TECHNICAL SPECIFICATIONS OF THE DISABLED PLATFORM The platform has two stops and can travel at a maximum speed of 0.15 m/s. It has a maximum load capacity of 385 kg and measures 1100 mm in width and 1400 mm in length. The platform floor is covered in antibacterial PVC. The drive system is hydraulic and the floor is fitted with push-button controls. The coating is anthracite, but various colour options are available. The well bottom depth is 0. The platform is equipped with an emergency rescue system. Ups Place of use: Indoor/outdoorAutomatic ramp: Yes
